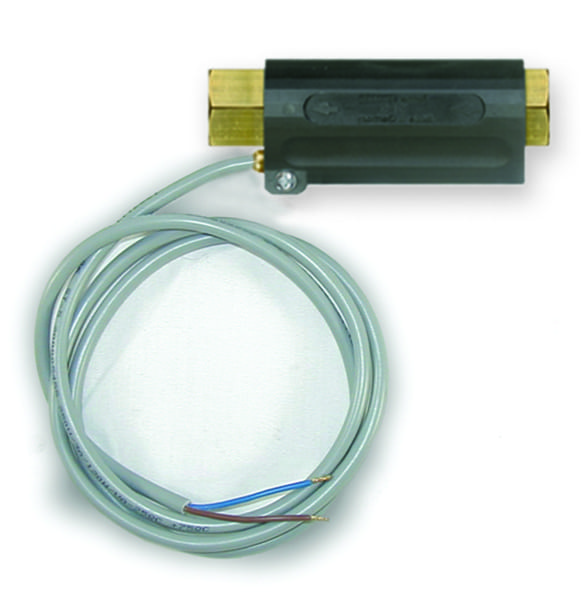

ST-5 Flow Switch (high flow) Parts Detail

Part # Pressure Temp. Flow Rate Inlet Outlet Wt. VA Desc.
200005700 75 PSI min-3046 PSI max 176° F 4 GPM min-16 GPM max 1/2" FPT 1/2" FPT .98 lb   Vertical Mount
200005710 75 PSI min-3046 PSI max 176° F 4 GPM min-16 GPM max 1/2" FPT 1/2" FPT .98 lb   Any Position Mount

Applications

Free floating brass magnet configuration.

Features

• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close.
• Easy brass reed switch replacement.
• 47 inch cord length
• High Flow
  • Parts List
  • Repair Kit
  • Specs
  • Manual

FILE DOWNLOAD: 200005700-plist.pdf

FILE DOWNLOAD: 200005431-rkit.pdf  ( View )
FILE DOWNLOAD: 200005528-rkit.pdf  ( View )

FILE DOWNLOAD: ST5 Flow Switch-spec sheet.pdf

FILE DOWNLOAD: ST5 & ST6-manual.pdf
