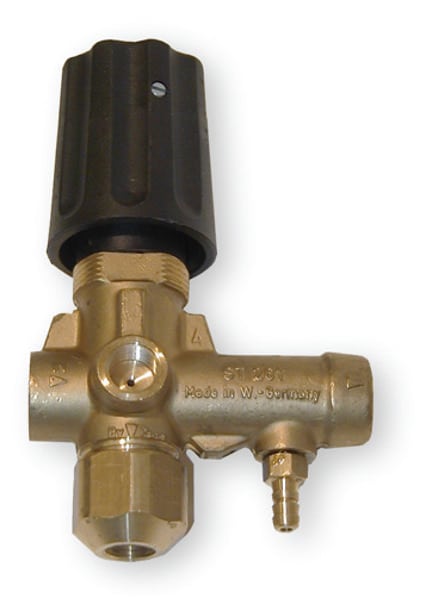

ST-261I Unloader Valve Parts Detail

Part # Pressure Temp. Flow Rate Inlet Outlet Injector AMPS Bypass Conn. Wt.
200261560 500 PSI min-3625 PSI max 176° F 8 GPM 3/8" FPT 3/8" FPT     1/4 1.36 lb
200261570 500 PSI min-3625 PSI max 176° F 8 GPM 3/8" FPT 3/8" FPT     1/4 1.36 lb
200261580 500 PSI min-3625 PSI max 176° F 8 GPM 3/8" FPT 3/8" FPT     1/4 1.36 lb

Applications

Built-in exclusive down stream (venturi-type) injector with built in orifice provides more precise siphon rate.

Features

• Working components constructed of high-grade stainless steel.
• PTFE and Viton seals for maximum heat and chemical resistance.
• Straight flow-through design minimizes pressure loss through valve.
• Adjustable valve allows limit setting on both maximum and minimum pressures.
• Internal bypass valve can be easily accessed and repaired without removing unloader from unit.
  • Parts List
  • Repair Kit
  • Specs
  • Manual
  • Video

FILE DOWNLOAD: 20026150x-plist.pdf

FILE DOWNLOAD: 200261526-rkit.pdf  ( View )
FILE DOWNLOAD: 200261528-rkit.pdf  ( View )
FILE DOWNLOAD: 200260720-rkit.pdf  ( View )

FILE DOWNLOAD: 20026150x-spec sheet.pdf

FILE DOWNLOAD: 2002615xx-manual.pdf
