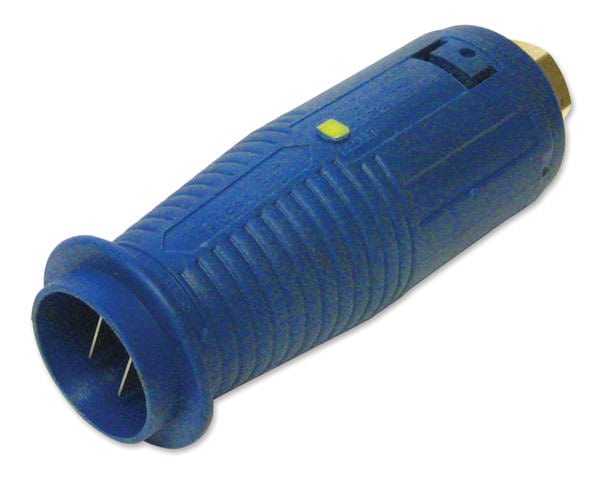

Multi-Reg Nozzle (high-low)

Part # 200059935
Pressure 3000 PSI
Inlet 1/4" FPT
Weight .34 lb

Multi-Reg Nozzle (high-low) Parts Detail

Part # Pressure Temp. Flow Rate Inlet Outlet Orifice Wt. Description Qty.
200059935 3000 PSI 140° F   1/4" FPT   3.5 .34 lb
200059920 3000 PSI 140° F   1/4" FPT   2.0 .34 lb

Applications

For use when high and low pressures are needed and switching between a solid or a flat spray pattern without changing nozzle. Low pressure mode great for introduction of downstream chemicals.

Features

• Quick and easy spray pattern adjustment from 0˚ solid stream to 80˚ flat spray with a simple twist of the nozzle head.
• High/low feature allows for fast setting to high or low pressure mode.
• Stainless steel fins. Cover made of special heavy-duty glass-filled plastics.
• Diameter: 1.25"
  • Video
